The Solution Components

SARA Enterprise Server

The server is plugged into the LAN (local area network) to enable existing computer workstations to view and administer the system

Designed to be administered by on-site personnel

The reporting engine provides reports on historical activity

SIP Integration Bundled (requires a license to activate)

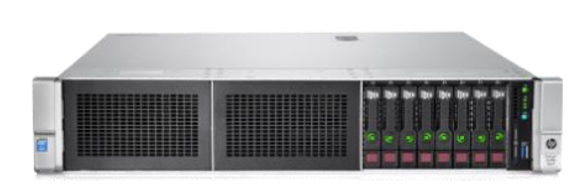

Enterprise Grade Rackmount 2U Chassis 17.54 x 27.5 x 3.44 in

  Server Model: HP ProLiant DL380p G10

• Operating System: Windows Server 2016 Standard

• Processor: Intel Xeon Bronze 3106 1.7 GHz processor

• Power Supply: Redundant 500W Hot Plug Power Supply

• Memory (RAM): 16 GB DDR4 RAM

• Hard Drives:

  • Configuration: 4 x 1 TB Hard Drive with RAID 1+0 Configuration

• Network Ports: 4 x 10/100/1000 LAN Ports

• Serial Ports: 3 Serial Ports (expandable to 7 without Dialogic, 5 with Dialogic)

• Voice Ports:

  • Standard configuration of 4 voice ports

  • Voice Card: 4 port voice card (SSVPE-4e)

    • Expansion Options:

      • Expandable to 20 ports (1 x 12 port voice card – SSVPE-12e and 2 x 4 – SSVPE-4e)

      • In this configuration, no onboard serial cards are available.

• Voice License Options:

  • SSVPE-SIP1 – SIP Voice License with 8 ports

    • Additional Option: Individual SIP Port (SSVPE-SIP) available up to 24 ports.

SARA EC Server

SARA EC server requires LAN (local area network) connectivity for integration with existing computer workstations, facilitating system administration and monitoring.

• Designed for administration by on-site personnel, ensuring ease of management.

• Reporting engine provides comprehensive reports on historical system activity for analysis and evaluation.

• Pre-programmed reminders for recurring events and Quick Messages for instant announcements such as inclement weather or security alerts.

• Includes a 4-port Dialogic card, expandable to 24 ports Dialogic or 24 SIP Voice Ports (SSVPE-4e, SSVPE-12e, SSVPE-SIP1, or SSVPE-SIP) for telephony capabilities.

  • Telephony capabilities enable voice alerts to mobile phones, landlines, PBX extensions, overhead PA systems, and 2-way radios (additional hardware may be required).

• Software Licenses include Inovonics EchoStream infrastructure licenses for up to 100 wireless sensors, with a maximum of 350 wireless devices allowed (SSINO not compatible with SARA EC).

• Integrations: Ability to monitor (inbound) or send (outbound) data from up to four external systems, such as fire panels, nurse call systems, wander detection systems, and access control systems.

  • The initial 100 devices and outbound alerting integration do not count against the maximum of four integrations

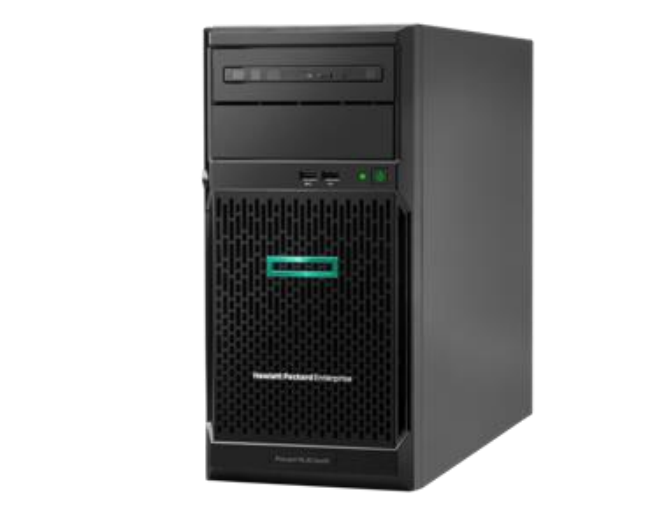

Server Model: HP ProLiant ML30 Gen10

• Chassis: 4U Tower, dimensions: 14.50" (H) x 6.89" (W) x 18.70" (D)

  • Note: Wall mount kit sold separately.

• Operating System: Windows Server 2016 Standard

• Processor: Intel® Xeon® E-2124 (4-Core, 3.3 GHz, 71W)

• Power Supply: (1) 350W

• Memory (RAM): 8 GB

• Hard Drives:

  • (2) HPE 2TB SATA 7.2K LFF LP DS HDD

    • Configuration: RAID 1 with RAID cache and backup battery

• Network Adapter: Embedded 2-Port 1GbE HPE Ethernet 332i Adapter

  • Note: Shared iLO port on NIC1.

• USB Ports: 4 USB 3.0 Ports

• PCIe Slots: 4 PCIe 3.0 slots (2 full length and 2 half length)

  • Included: 2 Port PCIe serial adapter (2 external serial ports)

  • Supports: PCIe Voice Cards only (SSVPE-4e or SSVPE-12e)

  • Not Supported: PCI Voice cards from SARA V2 servers

  • Voice License Limitations: Refer to the product catalog for voice license limitations per server model

Network Coordinator

The Network Coordinator (SSNETCRD-EN) serves as a central manager for signals between end devices, high-power repeaters, and the application controller in directed network systems.

Features:

• Wireless frequency technology designed to minimize nulls and dead spots, ensuring robust connectivity.

• Interfaces with multiple family devices, facilitating seamless addition of wireless devices to the network.

• Utilizes multiple receivers to offer extended range of transmission, enhancing coverage area.

• Equipped with two outputs: one for alarm signals and one for fault signals.

• Wireless interface (SSINO) is required when SSNETCRD-EN is used on an enterprise server.

Specifications:

• Dimensions: 6.5 x 3.5 x 1 inches

• Weight: 7.5 ounces

• Power: 11-14 VDC

• Includes cable for convenient installation.

• Compatible with Inovonics EchoStream for streamlined integration and operation.

High Power Repeater

The EchoStream 900MHz radio employs advanced wireless radio protocols and signal technology, enabling intelligent operation by amplifying transmissions from other transmitters within the network while effectively filtering out background noise. This flexibility in wireless functionality is essential in today’s dynamic environments. Additionally, the unique frequency spread spectrum technology utilized by the EchoStream 900MHz radio addresses the challenges posed by an increasingly congested wireless landscape. The network's backbone comprises intelligent repeaters capable of extending coverage to thousands of sensors across vast commercial campuses. Furthermore, the repeater offers an optional positioning license (SSSPSLIC) for precise location data using vector mapping technology, which is essential for the activation of mobile panic buttons (SSPND-EN).

The Wireless Plunger Base (SSWPPCB-ENV2) offers reliable and flexible notification services, enhanced with a reset/check-in button feature. The reset button serves the dual purpose of canceling an activation and facilitating daily check-ins through a fully supervised transmitter, which emits a distinct signal upon activation. This feature enables system administrators to track daily check-ins effectively. Additionally, an automated report is generated and sent to designated system administrators.

The wireless design of the Plunger Base Station ensures easy adaptation to various environments without the need for extensive cabling. Furthermore, its portability allows for convenient relocation whenever necessary

Specifications:

Radio: EchoStream 900MHz

Dimensions: 6.5” x 3.5” x 1”

Weight: 7.14 oz. • Power Requirement: 14 VAC, 60 Hz, 250 mA

Power supply: 120VAC@20VA/12VAC@1000mA

Battery Capacity: 3.6 VDC nominal, 2900 mAh

Back up Battery Life: 24 hours • Rechargeable battery: approximate 5-year battery life

Wireless Pull Cord

The Wireless Pull Cord (SSWPUL-ENV3) offers reliable and flexible notification services. Utilizing a fully supervised transmitter, it sends a distinct signal upon activation. Its wireless design allows for seamless integration into various environments without the need for cabling. Additionally, the Pull Cord can be easily relocated as needed for maintenance or reconfiguration purposes.

Features:

• Fully supervised 900 MHz transmitter ensures reliable communication.

• Durable design allows activation by hand or adjustable pull string.

• LED Lamp illuminates and flashes when the alarm is engaged.

• Adjustable non-absorbent pull string with handle for convenience.

• Each station features a dedicated LED to indicate button press or active call indication.

• Individual numbering capability for distinct location representation.

• Hot-swappable stations, eliminating the need for system shutdown.

• Pull cords made of non-contaminant ABS material, reducing infection spread.

• User-friendly stations for ease of use.

• Calls can only be canceled or shut off at the point of call/originating station.

Specifications:

• Dimensions: 4.75”H X 3”W X 2”D

• Battery: SSBATGEN (CR123A) – General Battery, pack of 20

• Battery Life: 1 – 3 years depending on usage (actual results may vary).

• SARA provides daily low battery reports for timely maintenance.

• Compatible with Inovonics EchoStream.

• Housing: Flame-retardant, translucent polystyrene plastic lens mounted on a flame-retardant (UL® 94V-0), white, ABS plastic base.

• Fits either standard dual gang box or single gang box.

Wireless Pull Cord with Check-in

The Wireless Pull Cord with Check-in (SSWPULCI-ENV3) offers reliable and flexible notification services, enhanced with a reset/check-in button for added functionality. This feature allows system administrators to track daily check-ins effectively, with automated reports generated and sent to designated administrators.

Features:

• Fully supervised 900 MHz transmitter ensures reliable communication.

• Durable design can be activated by hand or adjustable pull string, providing versatility.

• Reset/check-in button allows staff or users to indicate their presence.

• LED Lamp illuminates and flashes when the alarm is engaged, enhancing visibility.

• Adjustable non-absorbent pull string with handle for convenience.

Specifications:

• Dimensions: 4.75”H X 3”W X 2”D

• Battery: SSBATGEN (CR123A) – General Battery, pack of 20

  • Battery Life: 1 – 3 years depending on usage. SARA provides daily low battery reports for timely maintenance.

• Compatible with Inovonics EchoStream for seamless integration.

Features:

• Small, light, and comfortable design, 60% smaller than prior generation devices.

• IP67 rating allows safe usage while showering, bathing, etc. (Note: not tested or certified for use in chlorinated/salt water, hydrotherapy/hot tubs, etc.).

• Fully supervised wireless 900MHz frequency transmitter ensures security and reliability.

• Large single button alarm with bright lights signaling alarm and low-battery conditions.

• Vibration feature confirms alarm activation.

• Fully supervised by SARA for alarm, low battery, device missing, etc.

• Alarms can be cleared using a new Magnetic Alarm Clearance Card (sold separately – SSPND-ACC – 10 pack) or by using an alarm clear button press sequence.

Specifications:

• Dimensions: 1.6” x 1.6” x 0.5”

• Weight: 0.6 oz.

• Battery: SSBATPND-SM – Water Resistant Mobile Duress Button Battery, pack of 20

  • Battery Life: Approximately 1 year, consisting of approximately 1800 activations (5 per day lasting no longer than 10 minutes per activation). Actual battery life results will vary based on daily activations.

• Compatible with Inovonics EchoStream and SARA’s Positioning System (SPS).

Features:

• Executes SARA commands forwarded over the DomeLink® bus, ensuring efficient communication and response.

• Full-time self-testing capability, with trouble reports sent to SARA for proactive maintenance.

• Red and white LEDs rated at >30,000 hours, ensuring long-lasting performance.

• Supports 6 states: Red steady, red flash, red slow blink, white steady, white flash, white slow blink.

• Attractive plastic housing with a snap-on lens, providing excellent visibility.

• Energy-efficient design, utilizing low voltage, 12 volt DC power from the bus.

Specifications:

• Dimensions: Height: 4.56" (115 mm), Width: 4.56" (115 mm), Depth: 3.30" (84 mm).

• Housing: Flame-retardant, translucent polystyrene plastic lens mounted on a flame-retardant (UL® 94V-0), white, ABS plastic base.

• Fits either standard dual gang box or single gang box.

• Requires SSDOMEV2-CTL controller for operation.

Features:

Fully supervised 900 MHZ transmitter

Durable design can be activated by an attached plunger cord

Device activates when an attached plunger cord is removed

Uses momentary or latched plunger cords

Button used for resetting

LED Lamp that illuminates and flashes when alarm is engaged

SARA will provide daily low battery reports to keep you informed about which batteries need to be changed. This eliminates the need for monthly testing of hard-wired pull cords. In the event of a low battery or if a pull cord goes offline, the residence staff will be promptly notified

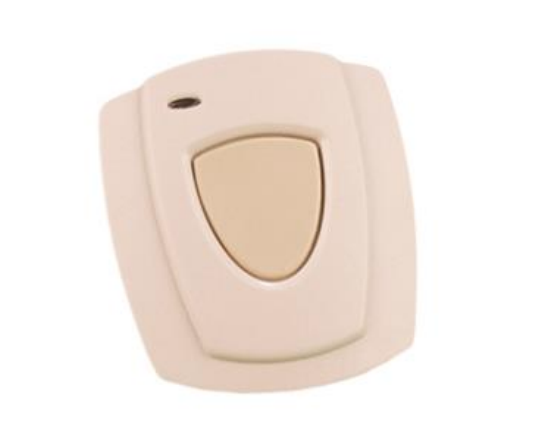

Mobile Duress Button

The Mobile Duress Button (SSPND-EN) is a compact, lightweight, and versatile device designed for personal safety. It can be handheld, worn on a belt, or around the neck with the included neck cord, easily convertible to a belt clip. By pressing and holding the single button, an alarm is activated, making it ideal for various environments.

Features:

• Fully supervised wireless 900MHz frequency transmitter ensures security and reliability.

• Large alarm button with alarm activation delay for ease of use and prevention of false alarms.

• Low battery warning provides one to two weeks' notice before battery depletion, allowing for scheduled replacement.

• Flashing LED indicator during alarm activation enhances visibility.

• Water-resistant with IP54 certification, suitable for use in the shower, rain, or situations where water could be splashed on the device (not designed for submersion).

Specifications:

• Dimensions: 2.2” x 1.9” x 0.72”

• Weight: 1.4 oz.

• Battery: SSBATPND (CR2450) – Mobile Duress Button Battery, pack of 20

  • Battery Life: 1 – 2 years depending on usage. SARA provides daily low battery reports for timely maintenance.

• Compatible with Inovonics EchoStream for seamless integration.

Water Resistant Mobile Duress Button

The new Water Resistant Mobile Duress Button (SSPND-EN-SM2 or SSPND-EN-WR2) is a small, lightweight, and versatile device available in two versions for wearing around the neck or on the wrist. By pressing and holding the single button, an alarm is activated and managed through SARA, making it ideal for various environments

Inovonics EchoStream Compatible Bed/Chair Wireless Sensor

SARA seamlessly integrates with the Inovonics EchoStream compatible Bed/Chair wireless sensor (SSBCSW-ENV5) to receive and interpret alarm data, subsequently pushing out managed alerts based on programmed modes and actions. For instance, when the pressure alarm is triggered or deactivated, SARA promptly detects and interprets the alarm, then dispatches an alert to the designated individual via pager, cell phone, wireless phone, etc.

Dual Input Temperature Transmitter with Probe

Features:

• Case tamper feature and supports end-of-line resistor for enhanced security.

• Mounting brackets facilitate quick and easy installation.

• Maximum flexibility with built-in magnetic reed switches, ensuring compatibility with various door/window configurations.

• Supports a Normally Open (N/O) switch with fast contact closure.

• No wiring required, simplifying installation process.

Specifications:

• Dimensions: 3.5 x 1.7 x 0.9 inches.

• Battery: SSBATGEN (CR123A) – General Battery, pack of 20.

  • Battery Life: 1 – 3 years depending on usage (actual results may vary). SARA provides daily low battery reports for timely maintenance.

• Compatible with Inovonics EchoStream for seamless integration.

Universal Transmitter

The Universal Transmitter (SSUT-EN) is designed for use with any standard dry contact or sensor, offering versatile monitoring capabilities.

Features:

• Supports both normally open (NO) or normally closed (NC) input, featuring an onboard reed-switch input for added flexibility.

• Utilizes frequency hopping spread spectrum technology to maximize reliability.

• Upon alarm activation, sends redundant messages across a bandwidth that is at least 10MHz wide.

• Can be used in conjunction with a standard relay when monitoring a circuit with voltage.

Specifications:

• Dimensions: 3.5 x 1.7 x 0.9 inches.

• Battery: SSBATGEN (CR123A) – General Battery, pack of 20.

  • Battery Life: 1 – 3 years depending on usage (actual results may vary). Daily low battery reports provided by SARA for proactive maintenance.

• Compatible with Inovonics EchoStream.

Uses (not limited to):

• Door Contact Monitor (requires additional hardware).

• Window Monitor.

• Equipment Monitor (on/off).

• Dry Contact Monitor (User Selectable NC or NO via onboard jumper).

LED Dome Light

The LED Dome Light (SSDOMEV2-LGT) serves as a visual indication system for emergency call applications, distinguishing between emergency and normal calls through its lighting patterns. It is seamlessly integrated into the 2-wire DomeLink® bus for easy installation.

Features:

• Reset button serves as the sole button and automatically resets the monitor for convenience.

• User-selectable delay options of 0, 1, or 3 seconds ensure flexible alarm response (local alarm annunciates instantly).

• Audible alert can be easily toggled on or off directly on the device, accommodating user preferences.

• Powered by a lithium battery (SSBATGEN CR123A) with an expected battery life of 12 months (actual results may vary based on usage).

• Includes battery cover and mounting strap for straightforward installation.

• Compatible with Inovonics EchoStream and SPS (SARA’s Positioning System), ensuring seamless integration with existing systems.

The Dual Input Temperature Transmitter with Probe (SSDTMPSNS) offers both internal measurement and external thermistor options within a single device. Its onboard sensor excels at monitoring ambient indoor temperature, while the external sensor can be selected by the user to suit specific applications. Temperature alarms are transmitted through SARA when abnormal conditions are detected via the probe or transmitter.

Features:

• Requires SSTEMPLOG License for Environmental Logging feature in SARA, facilitating logging and reporting based on periodic readings.

• Maximum cable length: 60 inches.

• Compatible with Inovonics EchoStream.

Temperature Measurement:

• Internal measurement transmitted as temperature:

  • Fahrenheit or Celsius.

  • Internal measurement range of -13° to 140°F.

  • Typical accuracy of 0.8°F at room temperature.

• External measurement transmitted as temperature or resistance:

  • External thermistor temperature range of -22° to 212°F.

  • External thermistor resistance range of 100 to 250,000 ohms.

• Typical external resistance measurement accuracy:

  • ±1% from 100 ohms to 500 ohms.

  • ±0.5% from 500 ohms to 250K ohms.

Door/ Window Transmitter with Reed Switch

The Fully Door/Window Transmitter (SSDWT-EN) is perfect for facilities requiring meticulous supervision of windows and/or doors. It's suitable for monitoring both single and double doors, as well as windows, offering compact and efficient monitoring solutions.

The Universal Transmitter (SSUT-EN) is designed for use with any standard dry contact or sensor, offering versatile monitoring capabilities.
